Mandrels and Deflection Gauge -

Mandrels and Deflection Gauge

Mandrels and Deflection Gauge

Images

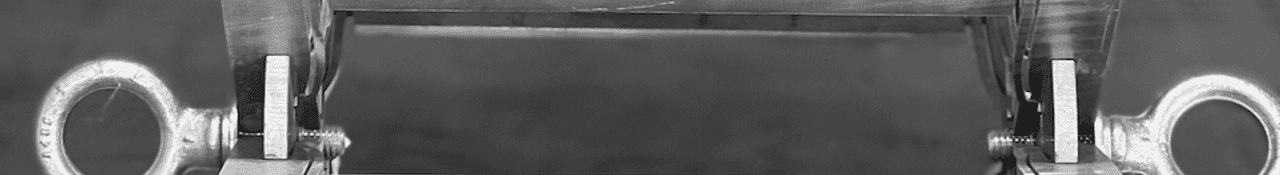

Mandrel

Product options

Contact Sales Sizing Data

Our Policies

Delivering world class service for two decades.

SDR 26 PIPE
Pipe Size 5% Deflection Finished Diameter 7.5% Deflection Finished Diameter
6” 5.33” 5.19”
8” 7.11” 6.93”
10” 8.87” 8.64”
12” 10.55” 10.27”
15” 12.90” 12.56”
18” 15.76” 15.34”
21” 18.57” 18.08”
24” 20.87” 20.32”
27” 23.51” 22.89”
30” 26.52” 26.29”
